Filters

[PluginName("My Name")]
public class MyFilter : IPositionedPipelineElement<IDeviceReport>
{
    public PipelinePosition Position => PipelinePosition.PreTransform;

    public event Action<IDeviceReport>? Emit;

    // Any reports, including positionals, are received here
    public void Consume(IDeviceReport report)
    {
        // report are emitted to other elements in the pipeline
        Emit?.Invoke(report);
    }
}

[PluginName("My Name")]
public class MyFilter : IFilter
{
    public FilterStage FilterStage => FilterStage.PreTranspose;

    // Position is received here
    public Vector2 Filter(Vector2 value)
    {
        return value;
    }
}

In 0.6.x, You are able to alter positionnal reports via the Consume() method, which is called on every report.
You can also choose to not emit a positionnal report to prevent it from going further in the pipeline.

In 0.5.x, you are able to alter positionnal reports via the Filter method, which is called on every report.
You may discard the report by returning Vector2.Zero or less if the user has Ignore output outside area is enabled.

Filters can choose to be called at two different stages of the pipeline by changing the value of Position.
The possible values are :

Before the transformation: PipelinePosition.PreTransform (0.6.x) / FilterStage.PreTranspose (0.5.x),
After the transformation: PipelinePosition.PostTransform (0.6.x) / FilterStage.PostTranspose (0.5.x)

(before or after the transformation from tablet to screen coordinates).

Do not block non-handled input types (0.6.x Only)

Plugins such as Filters should emit non-handled report types in Consume().
Failing in doing so may result in those reports being discarded.
(Preventing Bindings set by the user from being invoked & other plugins from working properly)

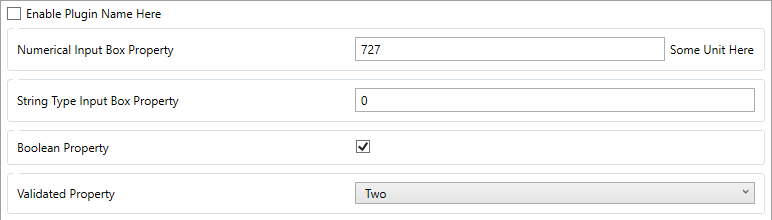

You can make your filter configurable by the user by adding properties to your class.

[Property("Numerical Input Box Property"),
 Unit("Some Unit Here"),
 DefaultPropertyValue(727),
 ToolTip("Filter template:\n\n" +
         "A property that appear as an input box.\n\n" +
         "Has a numerical value.")]
public int ExampleNumericalProperty { get; set; }

[Property("String Type Input Box Property"),
 DefaultPropertyValue("727"),
 ToolTip("Filter template:\n\n" +
         "A property that appear as an input box.\n\n" +
         "Has a string value.")]
public string ExampleStringProperty { get; set; }

[BooleanProperty("Boolean Property", ""),
 DefaultPropertyValue(true),
 ToolTip("Area Randomizer:\n\n" +
         "A property that appear as a check box.\n\n" +
         "Has a Boolean value")]
public bool ExampleBooleanProperty { set; get; }

// 0.6.x Only
[Property("Validated Property"),
 DefaultPropertyValue("Two"),
 PropertyValidated(nameof(SomeChoice))]
public string SomeValidatedProperty { get; set; } = string.Empty;

public static IEnumerable<string> SomeChoice { get; set; } = new List<string> { "One", "Two", "Three" };

Note

The Enumerable used for a PropertyValidated must be a static field.
